next-generation education equipment
E-CO PAINTER is
an eco-friendly painting simulator that overcomes the limitations of traditional painting training using next-generation extended reality (XR) technology. It replicates an on-site work environment by utilizing vehicle-equivalent panels and a real spray gun, enabling safe training with only air or water, no paint required.
A BRTECH-patented sensor tracks the spray gun 90 times per second to measure gun-to-surface distance, angle, speed, and film thickness in real time. Based on the measured data, the system provides feedback and supports efficient training through customized learning via instructor-defined scoring.
Trainees can practice the essential skills required for real painting work, and long-term achievement tracking is possible with individual profile and learning history management features. It is a smart painting training solution that reduces environmental burden and cost while strengthening trainee skills.
Differentiated Core Technology
01Ultra-precise Absolute-Position Tracking Sensor
An absolute-position tracking system with 12 sensors mounted above the workpiece provides high-precision, real-time tracking data.
023D Object Display
Training is performed on real, vehicle-equivalent 3D panels—not in VR—to maximize training efficiency by implementing three-dimensional painting work.
03Precision Scoring & Training
Provides accurate scoring and feedback based on instructor-defined evaluation criteria.
Real-time Data Feedback
Analyzes and scores the painting status using high-precision, sensor-based data for film thickness, speed, distance, and angle.
Full-Panel Refinish Mode

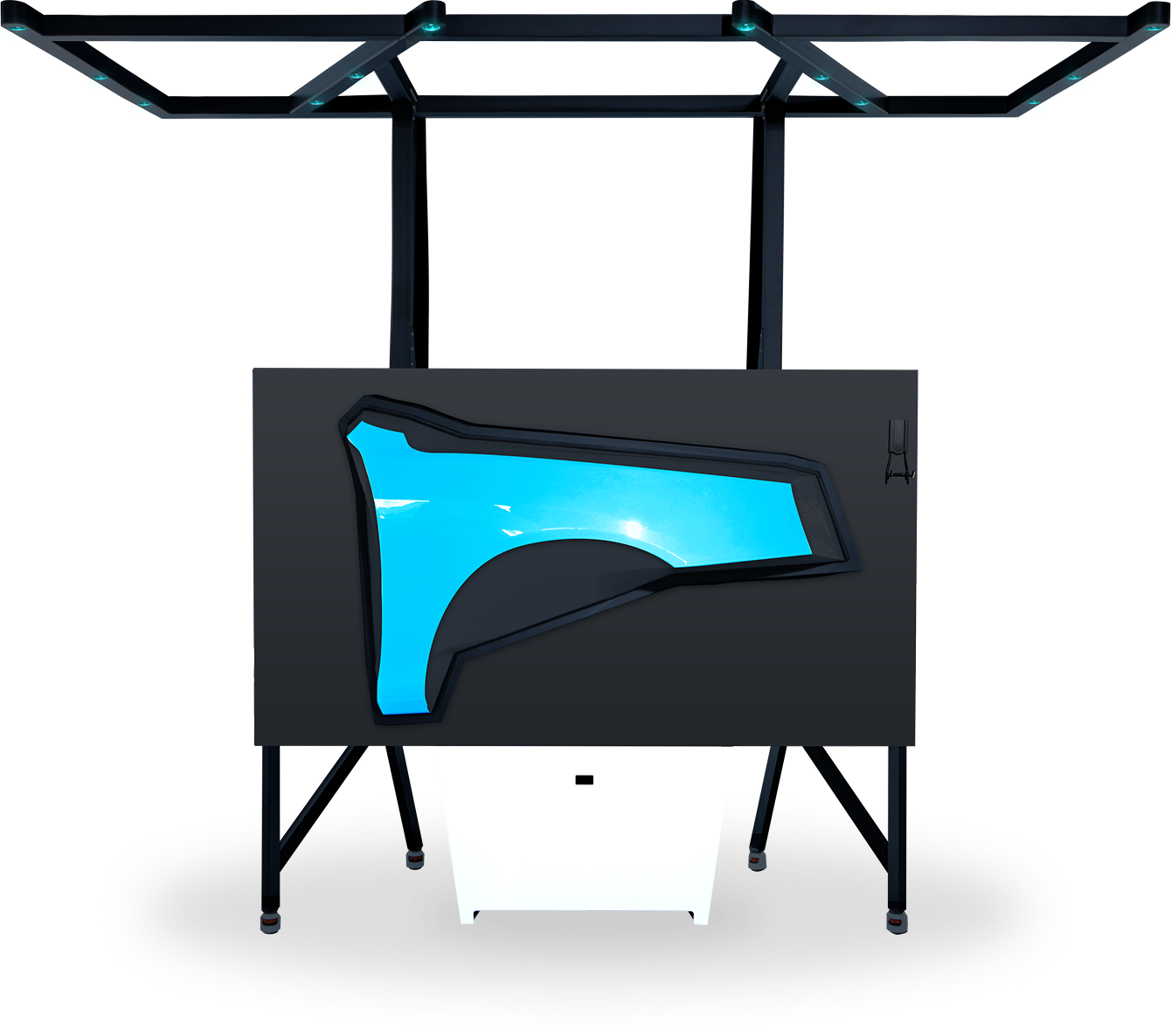

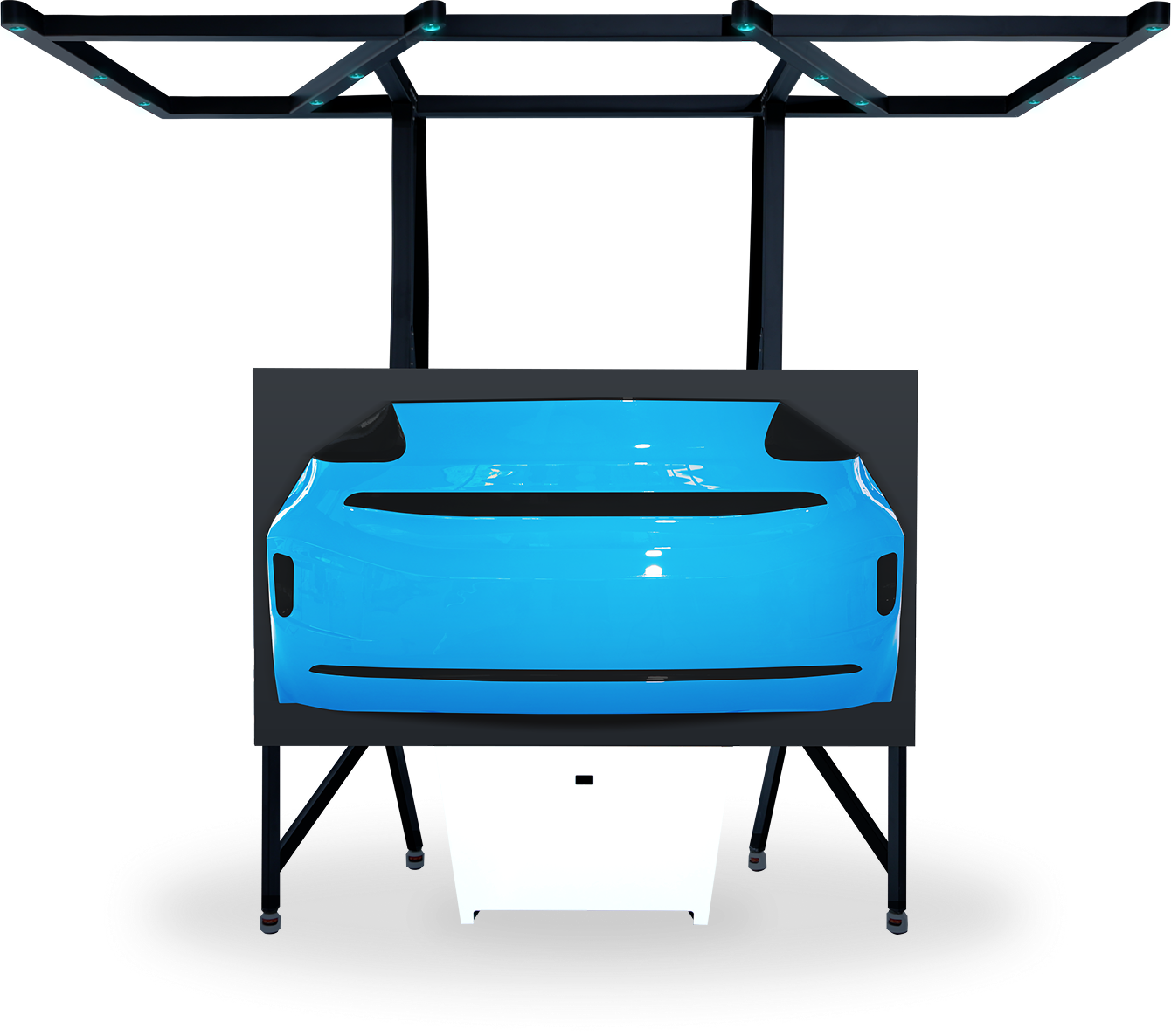

Training mode for painting entire panels, such as fenders or bumpers, to prepare for real-world painting processes.
Blending (Partial Refinish) Mode
Training performed following the actual process sequence (Primer - Base - Clear).
Spray Pattern Control & Inspection Light
Reproduces metallic particle clumping, flow, and mottling/unevenness.
Paint Preset Storage
Allows users to set and save methods that reflect the characteristics of each paint type.
Distance Training Mode
Provides a training mode to set and maintain a consistent gun-to-surface distance.
Individual Profile Setup & Management
Allows personalized management by setting up individual trainee profiles.
Up to 60% Efficiency Improvement
Training is conducted using interchangeable workpieces and a real spray gun (SATA model applied) equipped with sensors for air pressure, flow rate, and temperature. A tracking system with 12 sensors enables high-quality training through diverse scoring methods, including spray angle, distance, and speed.

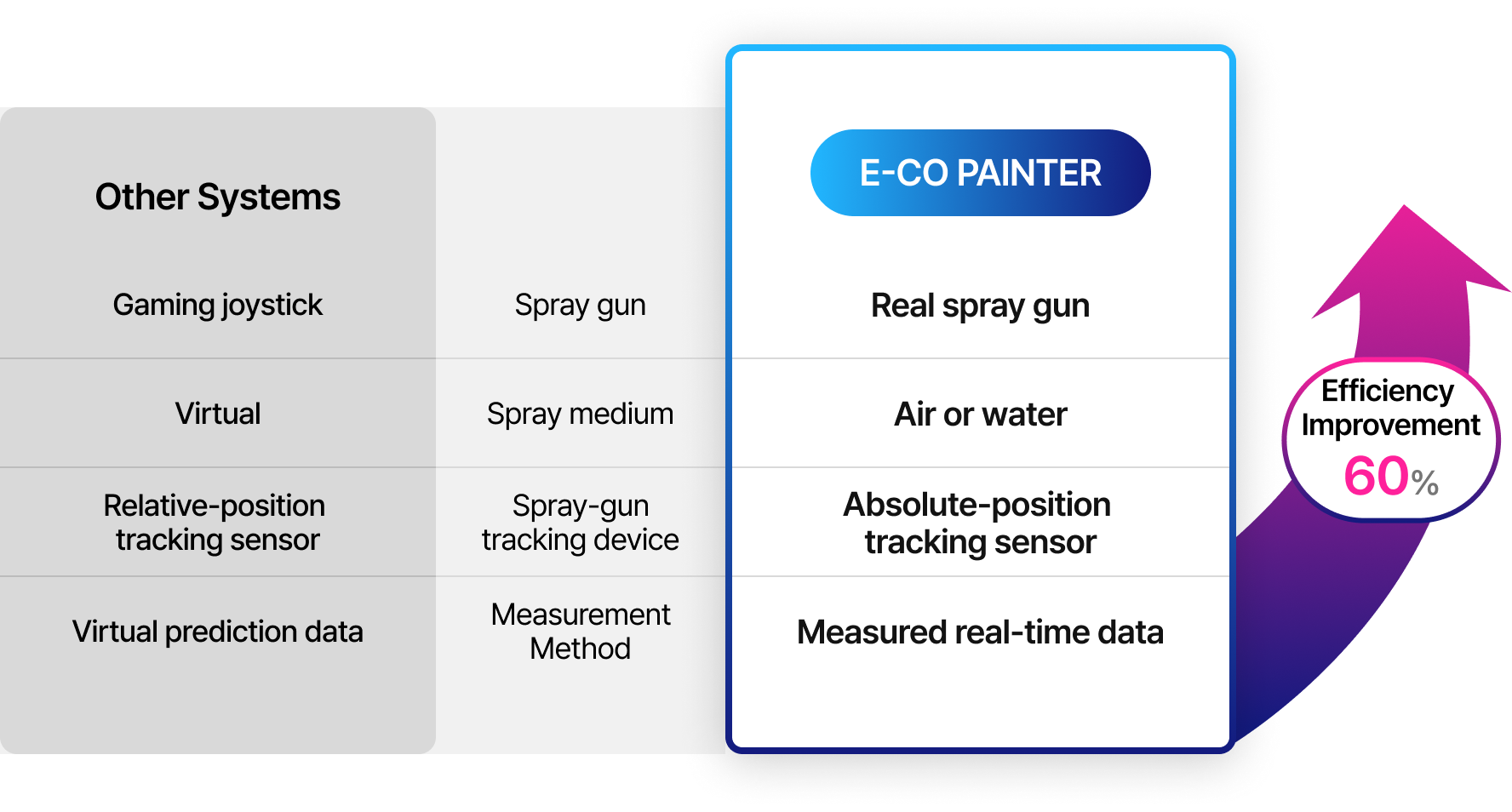

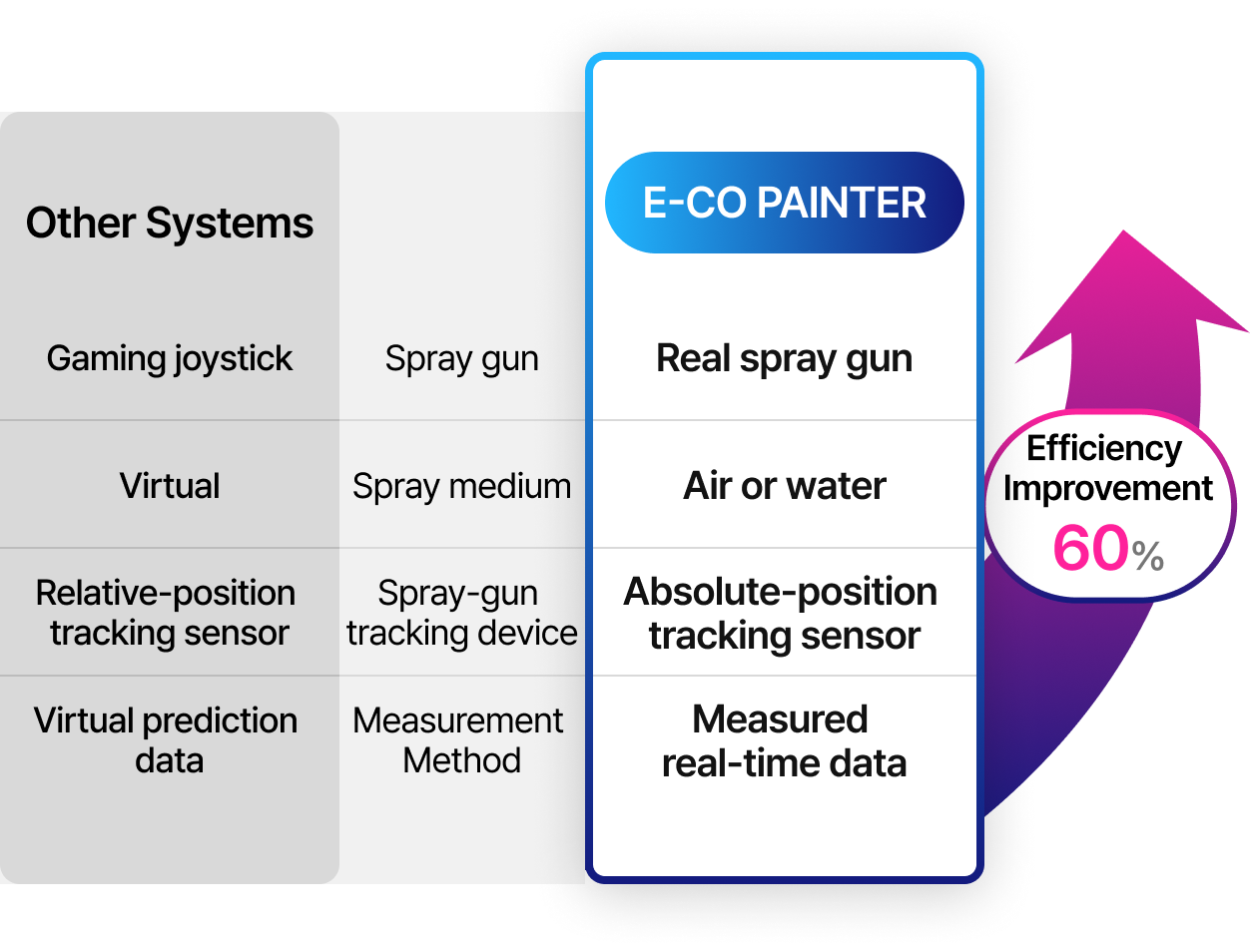

| Other Systems | E-CO PAINTER | |
|---|---|---|
| Spray gun | Gaming joystick | Real spray gun |
| Spray medium | Virtual | Air or water |
| Spray-gun tracking device | Relative-position tracking sensor | Absolute-position tracking sensor |
| Measurement Method | Virtual prediction data | Measured real-time data |
